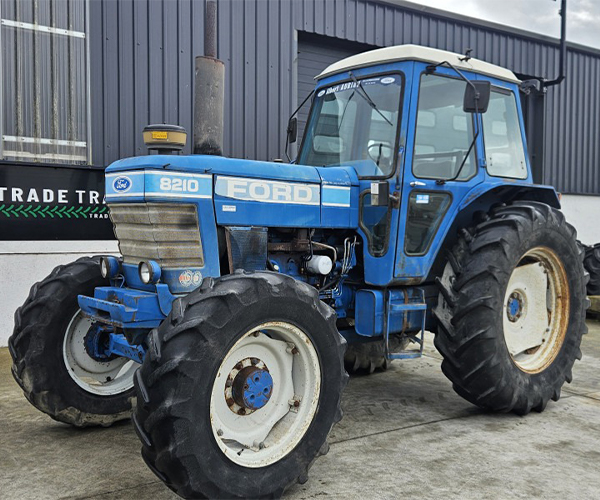

🚜 Ford 8210 (1982) Specifications

Category	Specification
Manufacturer / Model	Ford 8210 (“Ford-New Holland” branding in later production)
Production Years	1982 – 1991
Type	Row-crop diesel tractor

🔧 Engine / Powertrain

Feature	Specification
Engine Type	6-cylinder, liquid-cooled diesel
Displacement	401 cu in ≈ 6.6 L
Bore & Stroke	112 mm × 112 mm (4.40 in × 4.40 in)
Gross Power	~ 115 hp (≈ 85.8 kW)
Net Power	~ 110 hp (≈ 82.0 kW)
PTO Power (Claimed)**	~ 95 hp (≈ 70.8 kW)
Rated Engine RPM	2300 RPM
Compression Ratio	16.3:1

Feature	Specification
Transmission Type	Dual Power – two-speed powershift (i.e. a power shift “splitter” on ranges)
Number of Gears	16 forward / 8 reverse
Clutch	330 mm dry disc
Drive Options	2WD (rear wheels) and 4WD / MFWD options available
Differential Lock	Mechanical rear differential lock (A

Feature	Specification
Hydraulics	Open-center hydraulic system
Number of SCV / Valves	2 to 4 (depending on configuration)
Hydraulic Flow Rate (SCV)	~ 18.2 gpm (~ 68.9 L/min)
3-Point Hitch	Rear Type II, with position control and top-link draft sensing
Rear Lift Capacity at 24 in (≈610 mm)	~ 4,435 lbs (~2,011 kg)
PTO	Independent rear PTO, 540/1000 RPM

Feature	Specification
Wheelbase	109.6 in (≈ 278 cm)
Overall Length	~ 176.6 in (≈ 448 cm)
Cab Height	~ 114 in (≈ 289 cm)
Weight (2WD)	~ 8,730 lbs (≈ 3,959 kg)
Weight (4WD)	~ 9,370 lbs (≈ 4,250 kg)
Ground Clearance (front axle)	~ 19.6 in (≈ 49 cm)
Tread Width (Adjustable): Front	~ 60-79 in (≈ 152-200 cm)
Tread Width (Rear)	~ 60-80 in (≈ 152-203 cm)
Tires (Typical)	Front: 14.9-24 or 14.9-28 Rear: 18.4-34, 18.4-38, or 16.9-38

Feature	Specification
Fuel Tank Capacity	~ 47 US gallons (~ 178 liters)
Oil Capacity (Engine)	~ 20 qts (~ 18.9 L)
Coolant Capacity	~ 22.5 qts (~ 21.3 L)
Electrical	12-volt system; alternator ~72 amps; battery ~128 Ah
