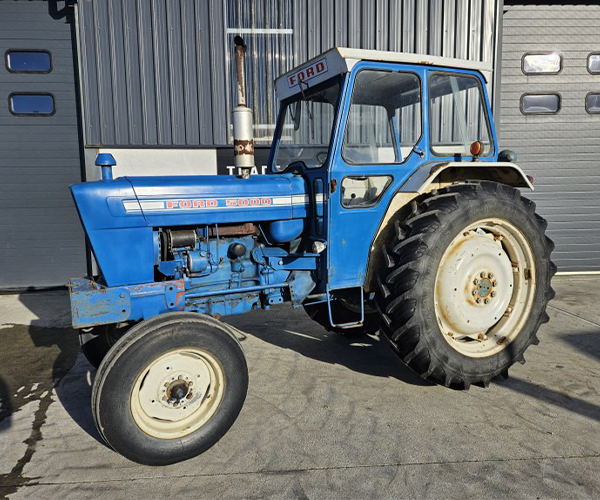

1975 Ford 5000

Stock Code: 6689

Manufacturer: Ford

Model: 5000

Year: 1975

Genuine low hour tractor

6649 hours with original Goodyear back tyres

make an inquiry

Category: Farm Machinery

Description
Reviews (0)

🚜 Ford 5000 (1975) – Specifications

Category	Specification
Model Year	1975
Manufacturer / Origin	Ford, Highland Park, Michigan, USA
Engine Options	• Diesel: 4-cyl liquid-cooled • Gasoline: 4-cyl liquid-cooled
Displacement	~ 4.2 L (256 cubic inches)
Power Output	Diesel ~ 70 hp (≈ 52.2 kW) Gasoline ~ 71 hp (≈ 52.9 kW)
Torque	Diesel: ~ 199 lb-ft (≈ 270 Nm) Gasoline: ~ 207 lb-ft (≈ 280.7 Nm)
Compression Ratio	Diesel ~ 16.5:1 Gasoline ~ 7.75-8.0:1
Transmission Options	• 8-forward / 2-reverse sliding gear • 10-forward Select-o-Speed / (full power shift) • 16-forward Dual Power (partial power shift)
PTO	Independent rear PTO 540 RPM; some also 540/1000 RPM variants Engine speeds: ~ 1900 RPM for 540, ~2060 RPM for 1000 RPM mode
Hydraulics	Open center hydraulic system Hydraulic fluid capacity ~ 8.7 US gallons (≈ 32.9 liters) Pump flow ~ 6 gpm (~22.7 L/min) Pressure approx ≈ 2500 psi (≈ 172.4 bar)
Fuel Capacity	~ 20 US gallons (≈ 75.7 liters)
Electrical System	12-volt battery system; generator charging (~22 amps)
Wheelbase / Dimensions	GP (general purpose) wheelbase ~ 87.5 in (≈ 222 cm) Row-crop wheelbase ~ 96 in (≈ 243 cm) Length: GP ~ 141.6 in (≈ 359 cm), Row-crop ~ 149 in (≈ 378 cm) Width (GP) ~ 68.5 in (≈ 173 cm) Ground clearance ~ 14.25 in (≈ 36 cm)
Weight	Shipping / dry weight: GP ~ 5,740 lbs (≈2,603 kg), Row-crop ~ 6,250 lbs (≈2,835 kg) Operating weight ~ 5,865 lbs (≈ 2,660 kg) Ballasted (with weights) ~ 9,700 lbs (≈ 4,399 kg)
Tires	Front: 6.00-16 or 7.50-16 Rear: options like 13.6-38, 15.5-38, 16.9-30, 18.4-30, etc.
